Mobile Boom Pumps

47M Flowcrete Boom Pump – JXRZ47-5.18HP

Service Image

Designed for scale and reach, our 47M Flowcrete boom pump is purpose-built for large commercial projects, infrastructure, and high-rise developments. With a vertical reach of 46.2 metres and a horizontal reach of 41.2 metres, it's the go-to option when access or height is a challenge.

The five-stage RZ fold boom offers exceptional flexibility on complex sites, allowing for efficient setup and coverage across difficult angles.

Backed by heavy-duty features including twin oil pumps lifting output to 180 m3 per hour, a twinwall pipeline kit with tungsten wear plate and ring, high-pressure water wash-out and air blowout systems, air cuff, automatic greasing, and HBC radio remote control, our 47M Flowcrete is built to be reliable and consistent - getting the job done with confidence, pour after pour.

MAX OUTPUT
177 m³/h
VERTICAL REACH
46.2m
HORIZONTAL REACH
41.2m
FOLDING TYPE
5-section RZ fold
Unfolding Height
11.5m
End Hose Length
4.0 m

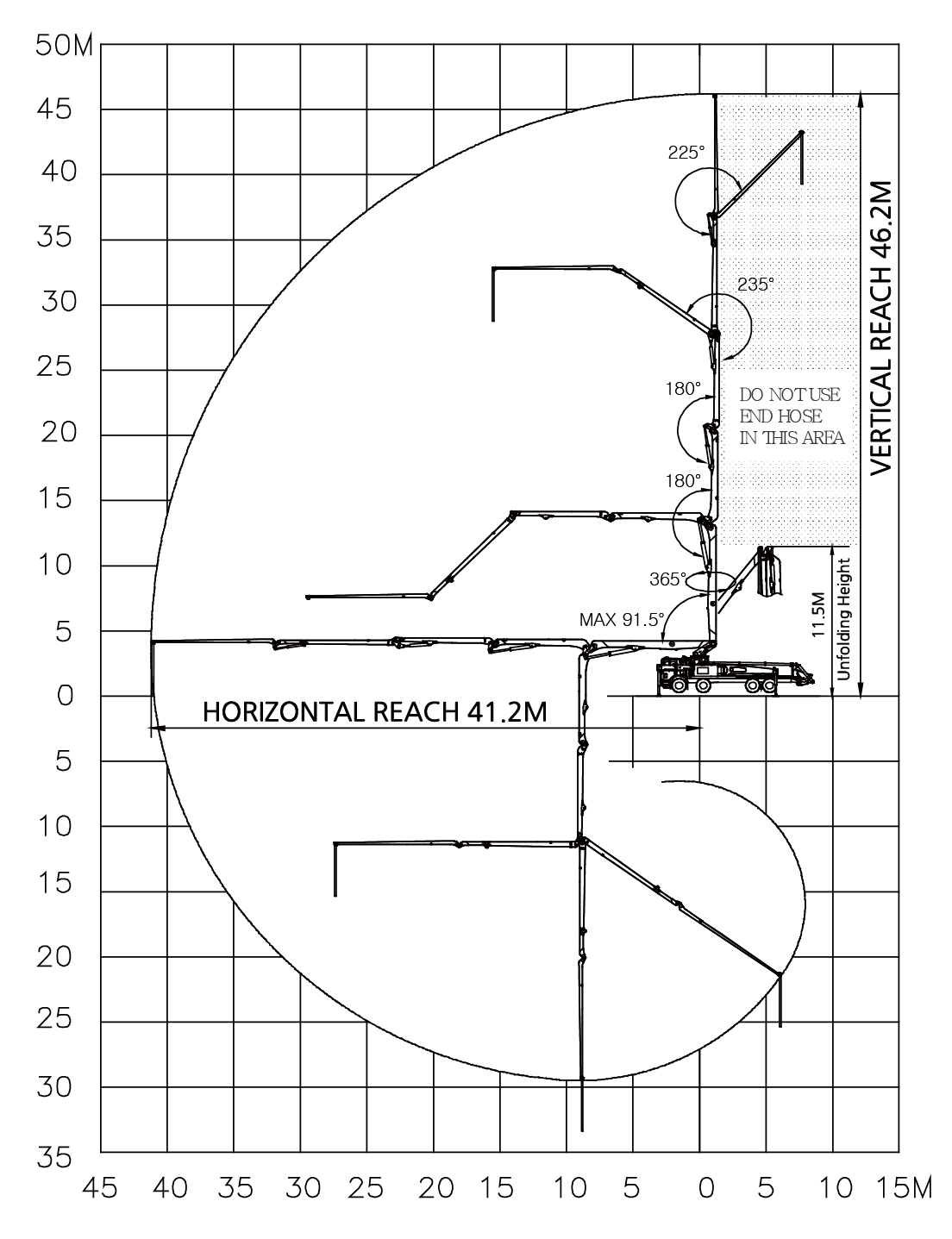

Boom Working Diagram

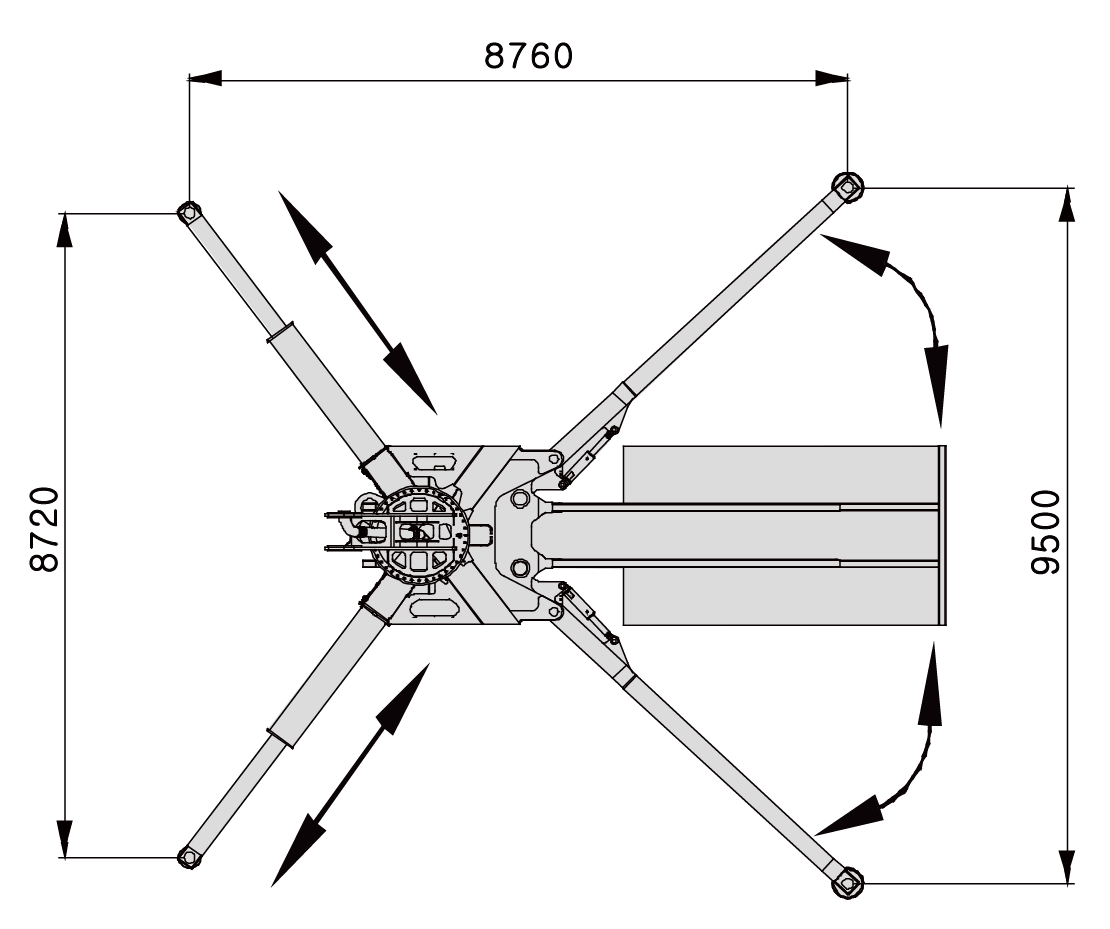

Outrigger Span
