Mobile Boom Pumps

42M Flowcrete Boom Pump – JXZR42-5.16HP

Service Image

Designed for reliable reach and strong output, our 42M Flowcrete boom pump is built for commercial slabs, mid-rise builds, and technically challenging sites. With a vertical reach of 41.7 metres and a horizontal reach of 37.7 metres, it delivers the coverage you need without compromising on control.

The five-stage Z R-fold X-leg boom offers excellent flexibility on site, with an 8.0 metre unfolding height that makes it easy to set up in tighter spaces. The 4.0 metre end hose keeps concrete placement controlled and accurate right where it's needed.

With heavy-duty features including a twin wall pipeline kit with tungsten wear plate and ring, high-pressure water wash-out and air blowout systems, air cuff, automatic greasing, and HBC radio remote control, the 42M is built to deliver pour after pour.

MAX OUTPUT
204 m³/h
VERTICAL REACH
41.7 m
HORIZONTAL REACH
37.7 m
FOLDING TYPE
8.0 m
UNFOLDING HEIGHT
8.0 m
END HOSE LENGTH
4.0m

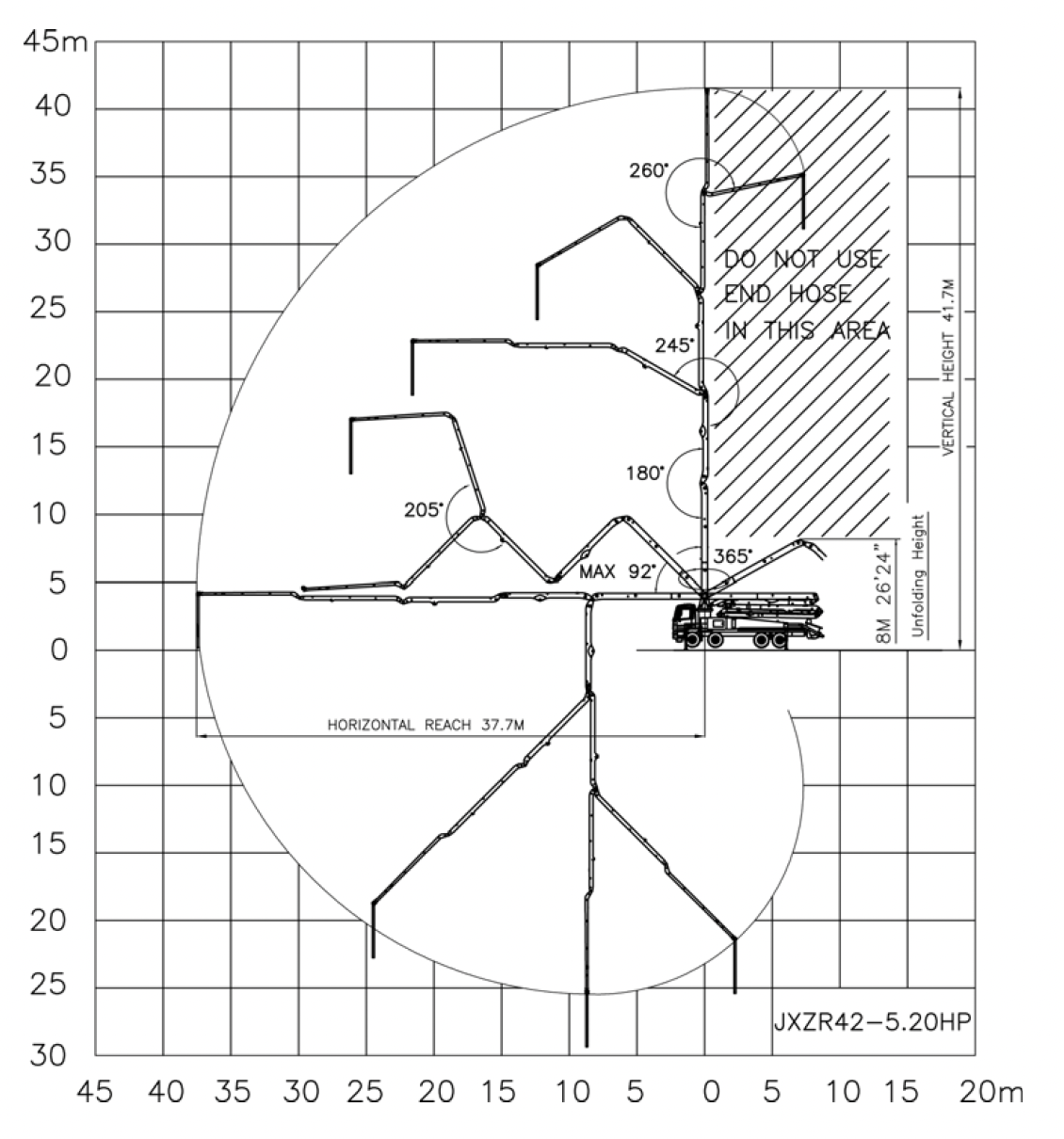

Boom Working Diagram

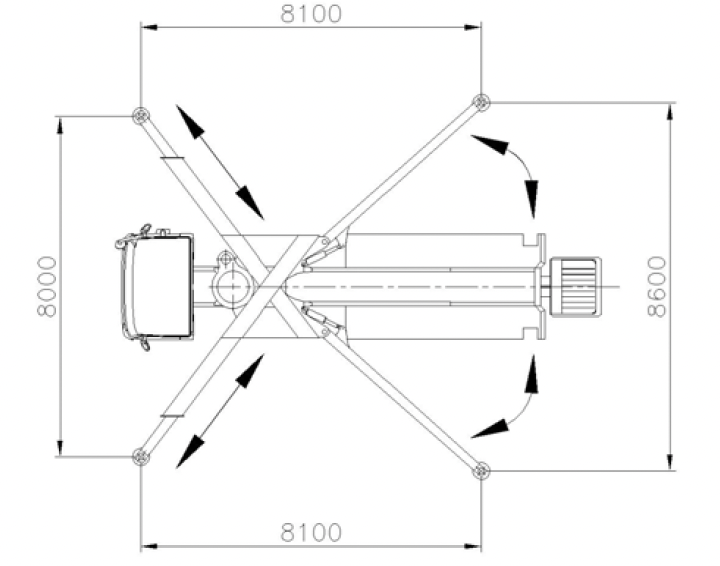

Outrigger Span
Download Icon
Download Specifications
