30M Flowcrete Boom Pump – JXZ30-4.16HP

Service Image

Delivering reliable performance in a compact package, our 30M Flowcrete boom pump is a practical option for small to medium commercial pours and residential work. With a vertical reach of 29.5 metres and a horizontal reach of 25.7 metres, it offers solid coverage on sites where space is limited.

The four-stage Z type boom keeps setup fast and simple, with an unfolding height of just 6.85 metres.

At just 158 m³/h and built on a compact four-stage frame, the 30M proves you don't need a big machine to get a big job done well.

MAX OUTPUT
158 ㎥/h
VERTICAL REACH
29.5 m
HORIZONTAL REACH
25.7 m
FOLDING TYPE
Z Type
UNFOLDING HEIGHT
6.85 m
END HOSE LENGTH
3.0 m

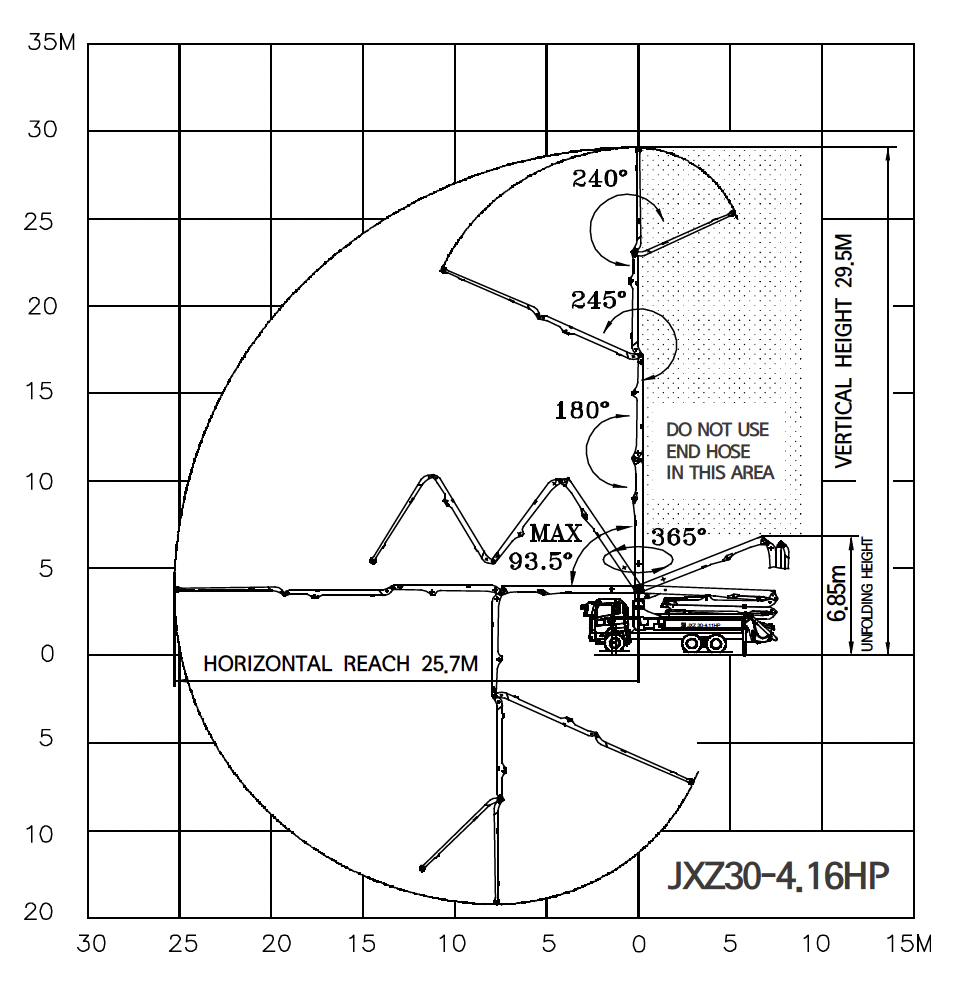

Boom Working Diagram

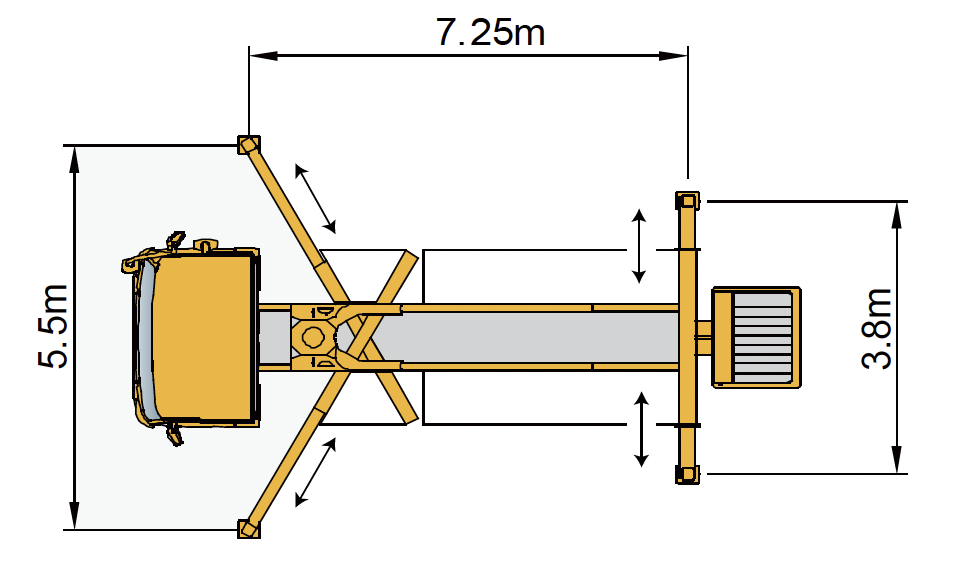

Outrigger Span
