Mobile Boom Pumps

28M Flowcrete Boom Pump – JXZ28-4.11HP

Service Image

Compact and efficient, our 28M Flowcrete boom pump is ideal for residential pours, smaller commercial jobs, and sites with limited access. With a vertical reach of 27.6 metres and a horizontal reach of 23.8 metres, it's a lightweight option that doesn't compromise on capability.

The four-stage Z fold boom is built for versatility on challenging sites, with an unfolding height of just 5.9 metres for quick, easy setup even in tight spots.

With a max output of 109 m³/h, the 28M is proof that a smaller footprint doesn't mean smaller performance - a smart, manoeuvrable choice for jobs where space is tight.

Advanced Concrete Pumping have two 28M Flowcrete boom pumps available, ready to support your next project.

MAX OUTPUT
109 ㎥/h
VERTICAL REACH
27.6 m
HORIZONTAL REACH
23.8 m
FOLDING TYPE
Z Fold
UNFOLDING HEIGHT
5.9 m
END HOSE LENGTH
3.0 m

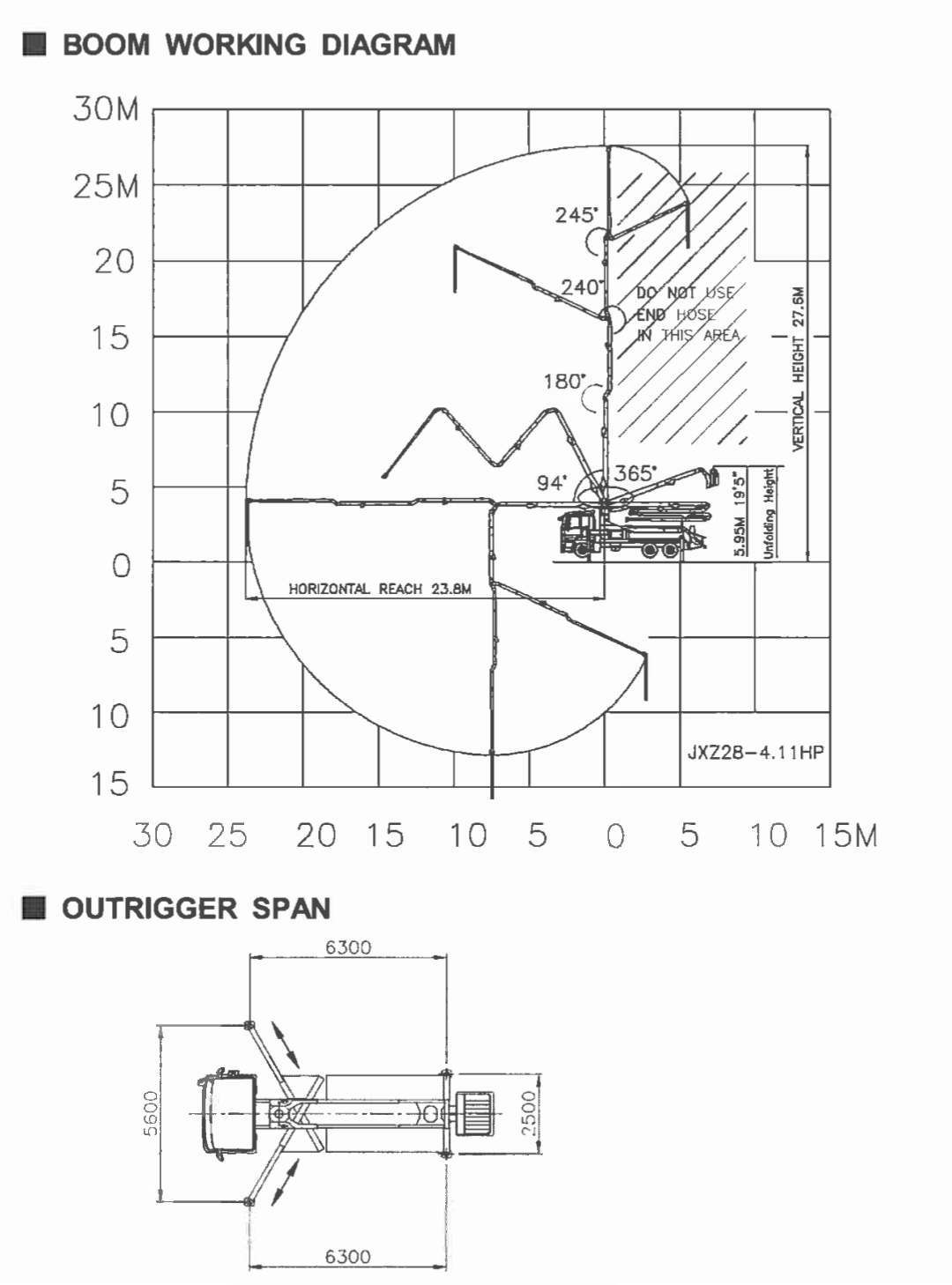

Boom Working Diagram
Outrigger Span
Download Icon
Download Specifications
